Multi-Parameter Water Quality Meter
Multi-Parameter Water Quality Meter

Water quality multi-parameter online automatic monitor

    The multi-parameter digital transmitter can support all of the company's digital online water quality sensors and is equipped with comprehensive external interfaces, facilitating functions such as sensor networking, remote control, and fault diagnosis.


Product overview of water quality multi parameter online automatic monitor

The multi-parameter digital transmitter can support all of the company's digital online water quality sensors and is equipped with comprehensive external interfaces, facilitating functions such as sensor networking, remote control, and fault diagnosis.

Features of multiparameter water quality meter

● The controller can automatically adapt to sensors, which can be combined and interchanged freely, allowing for plug-and-play functionality.
● It can connect up to 16 factors simultaneously and can be customized flexibly according to user needs.
● It automatically reads the internal calibration records of the smart electrode, eliminating the need for calibration when replacing electrodes, thus saving time.
● The 7-inch color touch display features a user-friendly interface that is clear and easy to operate.
● It has functions for data storage, viewing, and exporting, with customizable storage cycles.
● The RS485 interface enables networked monitoring.
● The unique lightning protection design ensures the reliability of the equipment's operation.
● It supports online software upgrades for convenient maintenance.

Performance indicators

Types of measurement Simultaneously display parameters such as pH, dissolved oxygen, conductivity, turbidity, temperature, COD,
ammonia nitrogen, residual chlorine, fluoride, and chloride, with a maximum of 16 parameters displayed.
Display screen 7-inch color touch screen, Chinese operating interface, easy to operate.
Display size 154mm*86mm
Resolution 800*480
Analog output 2 channels of 4~20mA current output
Relay output Route 3,, program-controlled output (can control self-priming pump, automatic cleaning)
Digital communication 1 x RS485 (standard Modbus-RTU protocol), other protocols can be customized
Data storage Data storage, data viewing, and data USB copy functions, with the ability to set the storage cycle independently.
Password protection Password protection corrects the data to prevent non-specialist malfunctions
Working environment 5~45℃, 0~95%RH
Protection level IP65
Shell material PC+ABS

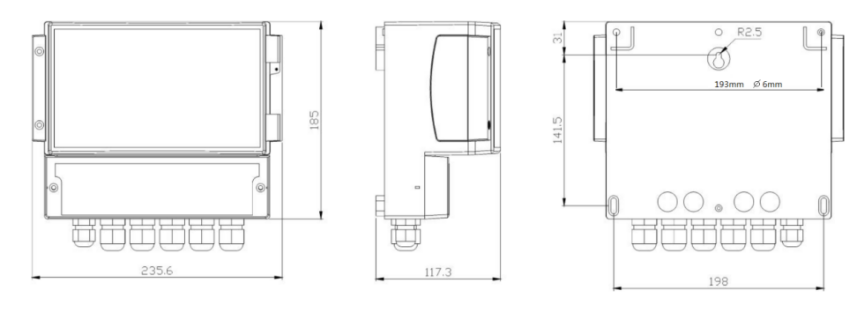

Dimensions 235mm*185mm*117mm (H * W * D)
Working voltage 220VAC, can be customized to 24VDC
